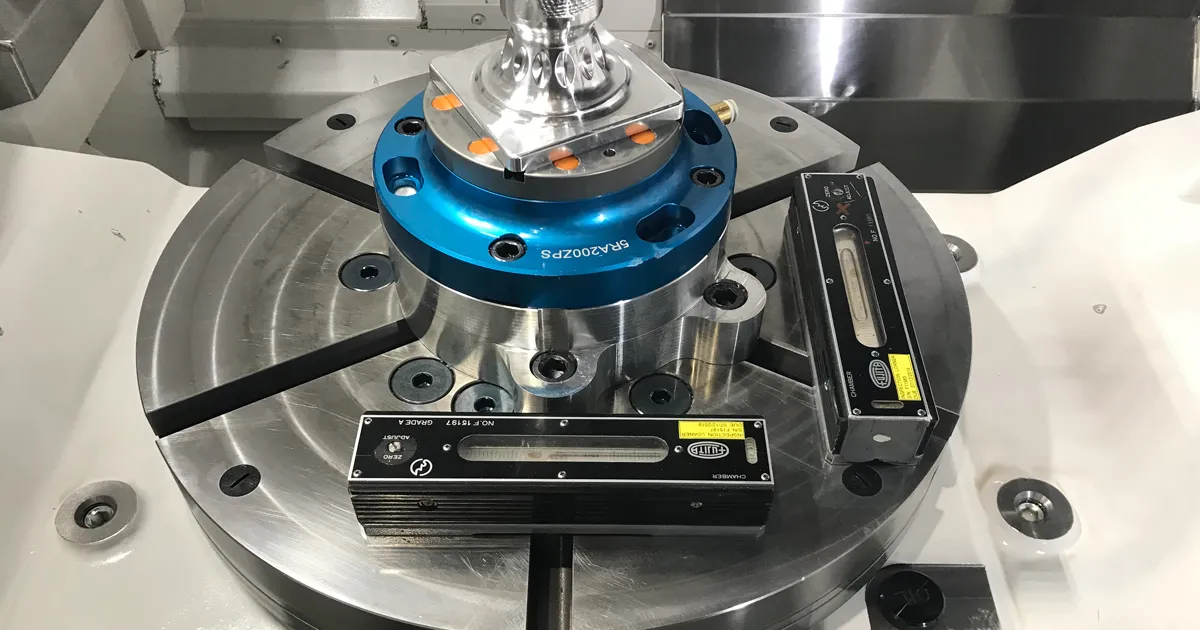

Workholding systems are essential in modern CNC machining. Jigs and fixtures directly impact precision, efficiency, and safety. Irrespective of the work-holding equipment you use, they must be adequately maintained to ensure consistent part accuracy and reduce machine downtime. Workholding fixtures can accumulate chips, wear out, and even fail without routine checkups. For these reasons, one must develop a well-structured maintenance routine to improve product quality.
Read on for a comprehensive CNC workholding maintenance program and the best practices to follow for the best results.
Importance of Regular Maintenance of Workholding Equipment
Workholding equipment performs optimally when adequately maintained. They ensure that workpieces are securely held for accurate and efficient cutting. You have to regularly maintain them to improve productivity and reduce replacement costs. Below are key reasons why regular work holding maintenance is crucial
Ensuring Machining Accuracy and Consistency
One must adequately maintain workholding fixtures to ensure the machine produces parts with extreme precision and tight tolerance. A poorly maintained tool can cause misalignment and instability. Slight movements of the workpiece lead to dimensional inaccuracies and parts that may not meet specifications. This is especially important during high-volume production, as a malfunctioning system will cause variations between the final components.
Reduce Machine Downtime
The use of maintained workholding tools prevents unplanned downtime during machining operations. A malfunctioning work holding system is one of the leading causes of machine downtime because it will require extra adjustments. This increases cycle time and reduces overall efficiency. Furthermore, poorly maintained fixtures increase troubleshooting time. You will spend hours trying to figure out the issue instead of focusing on production.
Enhance Operator Safety
Safety is important in part manufacturing, as laws have been put in place to protect workers. Potential hazards include workpiece ejection. The parts can become dangerous as they fly around when they are loose. Additionally, the buildup of coolant and debris creates slippery surfaces that endanger the operator. Properly maintained jigs and fixtures ensure a safer working environment and prevent workplace accidents.
Prevent Damage to Cutting Tools
A flawed workholding system not only affects the workpiece. It has a significant impact on the CNC machine and cutting tools. This is because a slight shift of the workpiece may cause the cutting tool to crash into it. The result is usually tool breakage and costly failures. Furthermore, excessive and unwanted vibrations may damage the machine spindle. You can also experience increased stress on the machine’s moving parts.
Lower Production Costs
Using workholding fixtures that are maintained routinely improves manufacturing efficiency and lowers overall production costs. You will get fever defective parts that need reworking. Additionally, the cost of preventive maintenance is significantly lower than unexpected breakdowns. Furthermore, this practice extends the lifespan of workholding equipment and reduces the need for costly replacements.
Essential Maintenance for Workholding Equipment
Workholding systems such as vises, chucks, and clamps are constantly subjected to mechanical stress and wear. This can affect how well they function with time. For this reason, you must implement a structured maintenance plan to prevent costly downtime and extend equipment lifespan. Let’s discuss the breakdown of essential maintenance tasks for workholding jigs and fixtures.
Daily Maintenance Tasks
These include tasks you must carry out on a daily basis to prevent immediate issues that could impact machining accuracy.
- Visually inspect workholding components and check for visible wears and cracks. Look for misalignment and make sure no chips are stuck in moving parts.
- Use compatible cleaning agents and cloth to remove oil and fine dust. Make sure there are no contaminants that can interfere with clamping mechanisms.
- Inspect and tighten fasteners to prevent misalignment and shifting due to machine vibrations.
- Check clamping mechanisms and look for unusual sounds that indicate wear or insufficient lubrication.
- Additionally, light lubrication should be applied to moving parts, and excess lubricant should be wiped off to prevent contamination.
- Furthermore, always verify workpiece alignment during use. Check for proper contact between the workpiece and work holding surfaces.
Weekly Maintenance Tasks
The weekly maintenance tasks are more intensive and cover in-depth inspections and adjustments to prevent long-term issues.
- Deeply clean workholding components by dissembling them and removing accumulated contaminants. Use a degreaser or solvent to clean coolant residue and metal shavings properly.
- Inspect the metal surfaces for early signs of oxidation and remove rust using an abrasive pad.
- Apply lubricants to high-friction areas to prevent premature wear and clean out excess liquid to avoid contamination.
- You should also check clamping pressure and holding force. If necessary, adjust pneumatic clamps to maintain constant pressure.
- Don’t forget to inspect work holding contact surfaces and check for burrs on clamping jaws.
Monthly Maintenance Tasks
There are also some monthly maintenance tasks one ought to know. Some of these tasks include
- Disassemble key components for thorough inspection. Consider soaking very dirty ones in an appropriate cleaning solution to remove built-up debris.
- Check the hydraulic systems and inspect fittings for leaks or signs of wear.
- Additionally, inspect worn components and replace damaged parts to maintain accurate clamping.
- Always remember to use precision measurement tools to calibrate workholding fixtures and clamps.
- Perform a load test on workholding equipment and observe any deflection in the setup.
- Furthermore, ensure chucks grip workpieces evenly and replace components if misalignment is significant.
Quarterly Maintenance Tasks
Workholding maintenance tasks also include those you will carry out quarterly. It entails full recalibration, deep inspections and replacement of essential components.
- Examine all components of the workholding equipment and compare how they perform currently to how they were initially.
- Recalibrate fixtures and document the results for future reference.
- You should also replace aging seals, refill fluids, and test the system under load conditions.
- Perform stress tests on the workholding equipment and replace components that fail the test.
- Based on your findings, adjust future maintenance schedules.
Best Practices for Workholding Maintenance
When carrying out daily and routine maintenance of workholding fixtures, there are some best practices one should have in mind to get maximum results. Let’s discuss five best practices for effective workholding maintenance.
Implement a Structured Schedule
You have to implement a well structured maintenance schedule for workholding fixtures. This will prevent gradual wear that can lead to sudden failures as a result of reduced clamping force. Furthermore, a maintenance checklist should be used to track completed tasks. Set up automated reminders and assign specific team members to different tasks if possible.
Use the Correct Lubricant
In all you do, always use the correct type and amount of lubricant. The lubrication system reduces friction and ensures smooth movement of work-holding components. Choose the proper lubricant for each element and apply it correctly. Additionally, lubrication pathways must always be inspected and cleaned. You should always track the components that have been serviced.
Follow Manufacturer Recommended Torque Values
You have to fasten workholding devices properly to ensure proper clamping pressure. Over or under-tightening the fasteners can lead to detrimental consequences. To avoid mistakes, refer to manufacturer torque specifications. Additionally, you should check torque values after every maintenance task to be sure they are within range.
Provide Training for Maintenance Personnel
The success of the workholding maintenance plan depends on how skilled the personnel is. You must have the necessary skills and knowledge to carry out the tasks. Technicians and operators should understand proper cleaning and lubrication techniques to avoid contamination. They must learn how to identify wear and potential failure points.
Maintain Detailed Maintenance Records
Keeping detailed work holding maintenance records is key. It will allow you to track wear patterns and accurately predict failures. You can quickly identify recurring issues and optimize performance over time. Use digital maintenance tracking software to store and analyze records if possible. This will make you anticipate failures and tackle them before they occur.
Conclusion
You must regularly and properly maintain workholding jigs and fixtures to get reliable results and ensure optimal performance. Following the comprehensive maintenance schedule outlined in this article can prevent misalignment and produce components with tight tolerance requirements. A well-maintained workholding system is vital for improved machining accuracy, reduced downtime, and better product quality. For further questions and clarifications, reach out to Zintilon for all your manufacturing needs.
